Домой > продукты > Шестерня экскаватора > Industrial-Grade Excavator Gearbox Ring Gear EX1200-5C/EX1200-6 1030106

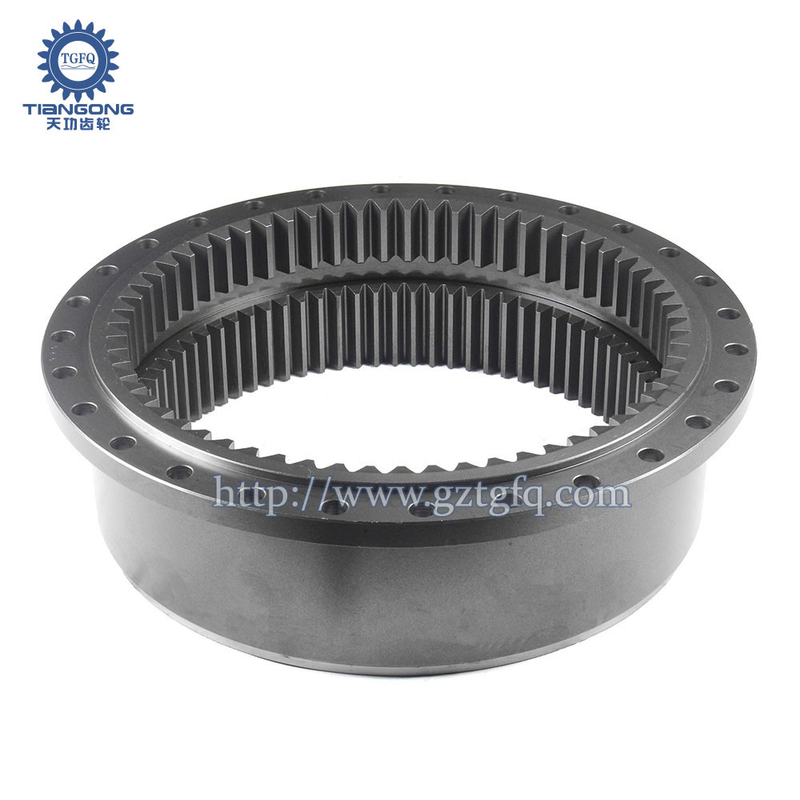

Industrial-Grade Excavator Gearbox Ring Gear EX1200-5C/EX1200-6 1030106

Подробная информация о продукции

Место происхождения: Гуанчжоу, Китай

Фирменное наименование: TGFQ

Номер модели: E330GC

Условия оплаты и доставки

Количество мин заказа: 1 шт.

Цена: 1575.00usd

Упаковывая детали: Внутренняя упаковка: обернутая пластиковой пленкой, прозрачная этикетка на каждом изделии.

Время доставки: 2-3 дня

Условия оплаты: T/T

Поставка способности: 300 шт / месяц

Лучшая цена
Выделить:

Industrial Grade Excavator Gearbox Ring gear

,

EX1200-5C Excavator Gearbox Ring gear

,

1030106 Excavator Gearbox Ring gear

Модель:
EX1200-5C/EX1200-6
Способ обработки:
Кольцевая шестерня
Номер детали:
1030106
Материал:
Сталь/сплав
Минимальный объем заказа:
1 шт.
Размер:
Настраиваемый
Опаковка:
Деревянный корпус/картон/палет
Применение:
экскаватор
Модель:
EX1200-5C/EX1200-6
Способ обработки:
Кольцевая шестерня
Номер детали:
1030106
Материал:
Сталь/сплав
Минимальный объем заказа:
1 шт.
Размер:
Настраиваемый
Опаковка:
Деревянный корпус/картон/палет
Применение:
экскаватор
Industrial-Grade Excavator Gearbox Ring Gear EX1200-5C/EX1200-6 1030106


Industrial-Grade Excavator Gearbox Ring Gear EX1200-5C/EX1200-6 1030106 0



Details
Teeth Holes

63/77Teeth 26/28Holes


Industrial-Grade Excavator Gearbox Ring Gear EX1200-5C/EX1200-6 1030106 1



0 1013435 [1]   SPINDLE
2 J931860 [4]   BOLT
3 A590918 [4]   WASHER;SPRING
4 4271596 [1]   O-RING
6 4688059 [1]   MOTOR;OIL
7 1033971 [1]   DRUM
9 2027546 [1]   SUPPORT
10 M341230 [18]   BOLT;SOCKET
11 4082698 [1]   SEAL;GROUP
12 4224213 [1]   BRG.;ROL.
13 4236786 [1]   BRG.;ROL.
15 4661591 [1]   SPROCKET
17 4085857 [30]   WASHER
18 J932785 [30]   BOLT
19 3045511 [1]   NUT
20 3045510 [1]   PLATE;LOCK
21 J901430 [2]   BOLT
22 4471870 [4]   BRG.;SPH.ROL.
23 1030005 [1]   CARRIER
24 3094471 [4]   GEAR;PLANETARY
26 959503 [4]   RING;RETAINING
27 4235272 [4]   PIN;SPRING
28 4464815 [4]   PIN
29 4263905 [1]   SPACER
30 3094470 [1]   GEAR;SUN
32 4236701 [1]   O-RING
33 J782470 [28]   BOLT;SOCKET
35 1030106 [1]   GEAR;RING
37 2047641 [1]   CARRIER
38 3093778 [4]   GEAR;PLANETARY
39 4452484 [4]   BRG.;NEEDLE
40 4201913 [8]   PLATE;THRUST
41 4464814 [4]   PIN
42 4239705 [4]   PIN;SPRING
43 4219641 [1]   SPACER
44 3093780 [1]   GEAR;SUN
46 2047640 [1]   CARRIER
47 3093777 [3]   GEAR;PLANETARY
48 4464813 [3]   PIN
49 4096554 [3]   BRG;NEEDLE
50 4239572 [6]   PLATE;THRUST
51 4149437 [3]   PIN;SPRING
53 4484178 [1]   SPACER
54 2047642 [1]   SHAFT;PROP.
56 1030007 [1]   COVER


About US............................................................................................................................................


Industrial-Grade Excavator Gearbox Ring Gear EX1200-5C/EX1200-6 1030106 2

Industrial-Grade Excavator Gearbox Ring Gear EX1200-5C/EX1200-6 1030106 3

Industrial-Grade Excavator Gearbox Ring Gear EX1200-5C/EX1200-6 1030106 4

Industrial-Grade Excavator Gearbox Ring Gear EX1200-5C/EX1200-6 1030106 5



Exhibition Show......................................................................................

Industrial-Grade Excavator Gearbox Ring Gear EX1200-5C/EX1200-6 1030106 6

Industrial-Grade Excavator Gearbox Ring Gear EX1200-5C/EX1200-6 1030106 7

Industrial-Grade Excavator Gearbox Ring Gear EX1200-5C/EX1200-6 1030106 8



Product Description:

Product Summary:

The Excavator Swing Drive for EC950E is a crucial component for excavators that ensures smooth and efficient operation. This excavator travel reducer is designed specifically for the EC950E model, with parts numbers VOE14712083 VOE14666239 . It plays a vital role in the excavator travel reduction process, providing the necessary power and torque for the machine to move effectively.

Constructed with high-quality materials, this excavator travel gearbox part is built to withstand the rigors of heavy-duty excavating tasks. The inner packing of theSwing drive is done meticulously, ensuring that it is wrapped with shrink film for added protection during transportation and storage.

Whether you are involved in construction, mining, or any other industry that requires the use of excavators, having a reliableSwing drive is essential. The EC950E ExcavatorSwing Drive offers durability, efficiency, and high performance, making it a valuable investment for your equipment.


Packing and Shipping:

Product: ExcavatorSwing Drive

Description: High-qualitySwing drive for excavators, designed for durability and performance.

Packaging: The ExcavatorSwing Drive will be securely packaged in a sturdy cardboard box with foam padding to prevent any damage during transit.

Shipping: We offer fast and reliable shipping services to ensure your ExcavatorSwing Drive reaches you quickly and safely. Orders are processed promptly and tracking information will be provided for your convenience.


FAQ:

Q: What is the brand of the ExcavatorSwing Drive?

A: The brand is TGFQ.

Q: What is the model number of the ExcavatorSwing Drive?

A: The model number is DX150.

Q: What is the minimum order quantity for the ExcavatorSwing Drive?

A: The minimum order quantity is 1.

Q: What is the price of the ExcavatorSwing Drive?

A: The price is $835.

Q: What are the packaging details for the ExcavatorSwing Drive?

A: The packaging details include a Plywood Case.

Q: What is the delivery time for the ExcavatorSwing Drive?

A: The delivery time is 3 days.

Q: What are the payment terms for the ExcavatorSwing Drive?

A: The payment terms are TT (Telegraphic Transfer).

Q: What is the supply ability of the ExcavatorSwing Drive?

A: The supply ability is 20+ units.
